viva::Output Class Reference

#include <output.h>

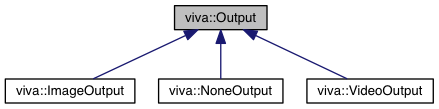

Inheritance diagram for viva::Output:

Public Member Functions
	Output (const Size &size=Size(-1,-1), int conversionFlag=-1)
virtual	~Output ()
virtual bool	writeFrame (Mat &frame)=0
virtual void	close ()

Protected Attributes
Size	_size
bool	_convert
int	_conversionFlag

Detailed Description

Abstract Output class to define a video sequence output.

Constructor & Destructor Documentation

viva::Output::Output ( const Size &  size = Size(-1, -1), int  conversionFlag = -1  )

inline

Output constructor defining the resolution and video type using OpenCV conversion flags e.g., CV_BGR2GRAY

virtual viva::Output::~Output ( )

inlinevirtual

Desctructor

Member Function Documentation

virtual void viva::Output::close ( )

inlinevirtual

Mehtod called to close the output medium

virtual bool viva::Output::writeFrame ( Mat &  frame )

pure virtual

Method call to output a new frame to the final output sequence

Returns

true if the Mat frame was sucessfully written

Implemented in viva::VideoOutput, viva::ImageOutput, and viva::NoneOutput.

---

The documentation for this class was generated from the following file:

• output.h
